358 Mesh Panels, Euro Fence and Paladin Fence for Intrusion Projects

Require 1: Extra high security V bends 358 mesh fencing system

• 200 × panels.
• 205 × posts (IPEAA 80 section).
• 2050 × spider clamps.
• 1100 × cup square M8 × 50 mm stainless steel.
• 1100 × shear nuts M8 stainless steel.
• 1100 × washers M8 25 × 2 mm stainless steel.
• Panel height: 2030 mm.
• Panel width: 2985 mm.
• Vertical wire width: 4.0 mm (untreated).
• Horizontal wire width: 4.0 mm (untreated).
• Mesh opening: 76.2 × 12.7 mm.
• 3 × V bends.
• Post dimension: 76 × 44 × 5.00 mm (width × length × thickness) hot rolled I beam.
• Post height: 3.2 m (with the upper 600 mm post bent at a 45 degree angle outwards to run 6 strands of electric wire).
• Surface: hot dipped galvanized and black powder coating.

Require 2: welded wire security mesh fence

• 1335 × panels.
• 1400 × posts (IPEAA 80 section).
• 16800 × spider clamps.
• 8400 × cup square M8 × 50 mm stainless steel.
• 8400 × shear nuts M8 stainless steel.
• 8400 × washers M8 25 × 2 mm stainless steel.
• Panel height: 2030 mm.
• Panel width: 2985 mm.
• Vertical wire width: 5.0 mm (untreated).
• Horizontal wire width: 4.0 mm (untreated).
• Mesh opening: 50 × 200 mm and 55 mm × 200 mm.
• 3 × V bends.
• Post dimension: 76 × 44 × 5.00 mm (width × length × thickness) hot rolled I beam.
• Post height: 3.2 m (with the upper 600 mm post bent at a 45 degree angle outwards to run 6 strands of electric wire).
• Surface: hot dipped galvanized and black powder coating.

Require 3: euro style fence with these specs:

• Height: 2.00 m.
• Length: 4000 m.
• Mesh size: 50 × 50 mm.
• Wire thickness: 3.00 mm.
• Finish: galvanized and PVC coated.
• Post height: 2600 mm.
• Post type: I-beam.

Require 4: paladin fence as per the following specification

• Panel height minimum 3200 mm.
• Wire thickness 4.0 mm before hot dipped.
• Poles and panel hot dipped galv after manufacture afterwards polyester powder coated.
• Small mesh size 50 mm × 12.5 mm, bigger mesh size 50 mm × 50 mm.
• Poles 100 mm × 50 mm × 3.0 mm and 900 mm will buried into ground.
• Panel size 2.35 mts × 3.2 mts.
• Panel will be fix to poles by clips and SS tamper proof bolt grade 304 or 316.

•

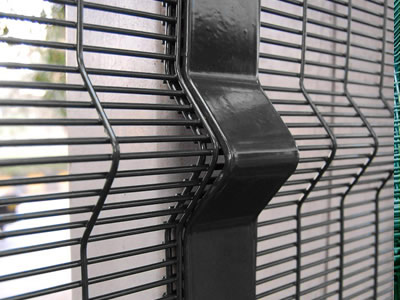

  EFP-01: Extra high security V bends 358 mesh fence

•

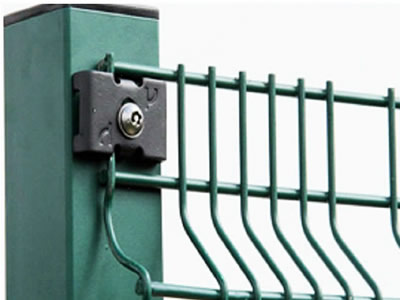

  EFP-02: Green painted paladin fence.
